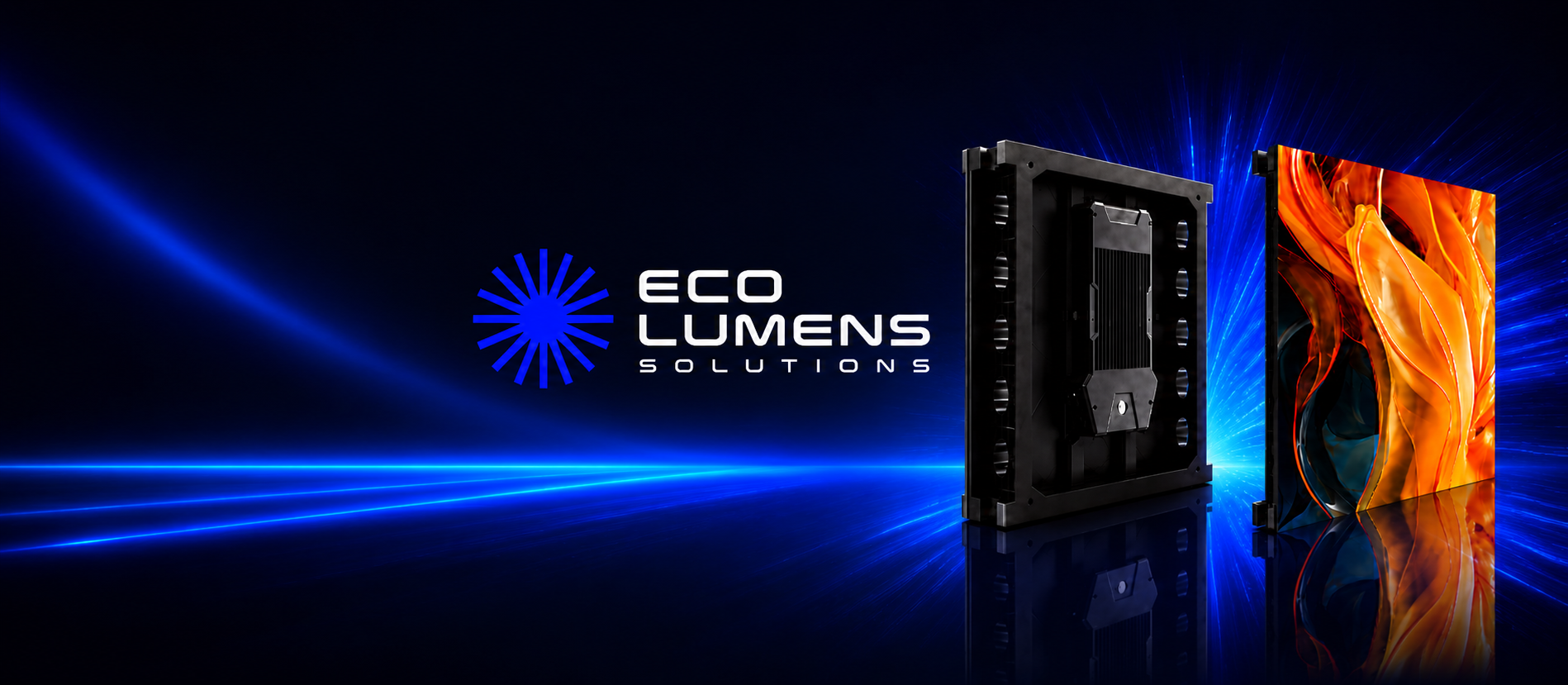

MG9 Series
- Upgraded version of flagship rental LED screen
- Pixel pitch: 2.9 / 3.9 / 5.9mm
- Dimension: 500*500*71mm
- Operating environment: Indoor & Outdoor
| Pixel Pitch (mm) | 2.9 | 3.9 | 3.9 | 5.9 |
| Operating Environment | Indoor & Outdoor | Indoor & Outdoor | Indoor & Outdoor | Indoor & Outdoor |
| Module Size (mm) | 250*250 | 250*250 | 250*250 | 250*250 |
| Cabinet Size (mm) | 500*500*71 | 500*500*71 | 500*500*71 | 500*500*71 |
| Cabinet Resolution (W×H) | 168*168 | 128*128 | 128*128 | 84*84 |
| IP Grade | Front IP65 Rear IP54 | Front IP65 Rear IP54 | Front IP65 Rear IP54 | Front IP65 Rear IP54 |
| Weight (kg/Cabinet) | 6.3 | 6 | 6 | 5.9 |
| White Balance Brightness (nit) | 3500-3800 / 4000-4500 | 4000-4200 / 5000-5500 | 3200-3500 / 4000-4200 | 3000-3500 / 4000-4500 |
| Horizontal/Vertical Viewing Angle ( °) | 160/160 | 160/160 | 160/160 | 160/120 |
| Power Consumption (W/m²) | 700±15%/235±15% | 700±15%/235±15% | 550±15%/180±15% | 700±15%/235±15% |
| Refresh Rate (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Control System | Nova | Nova | Nova | Nova |
| Product Certification | CE,FCC,ETL | CE,FCC,ETL | CE,FCC,ETL | CE,FCC,ETL |
