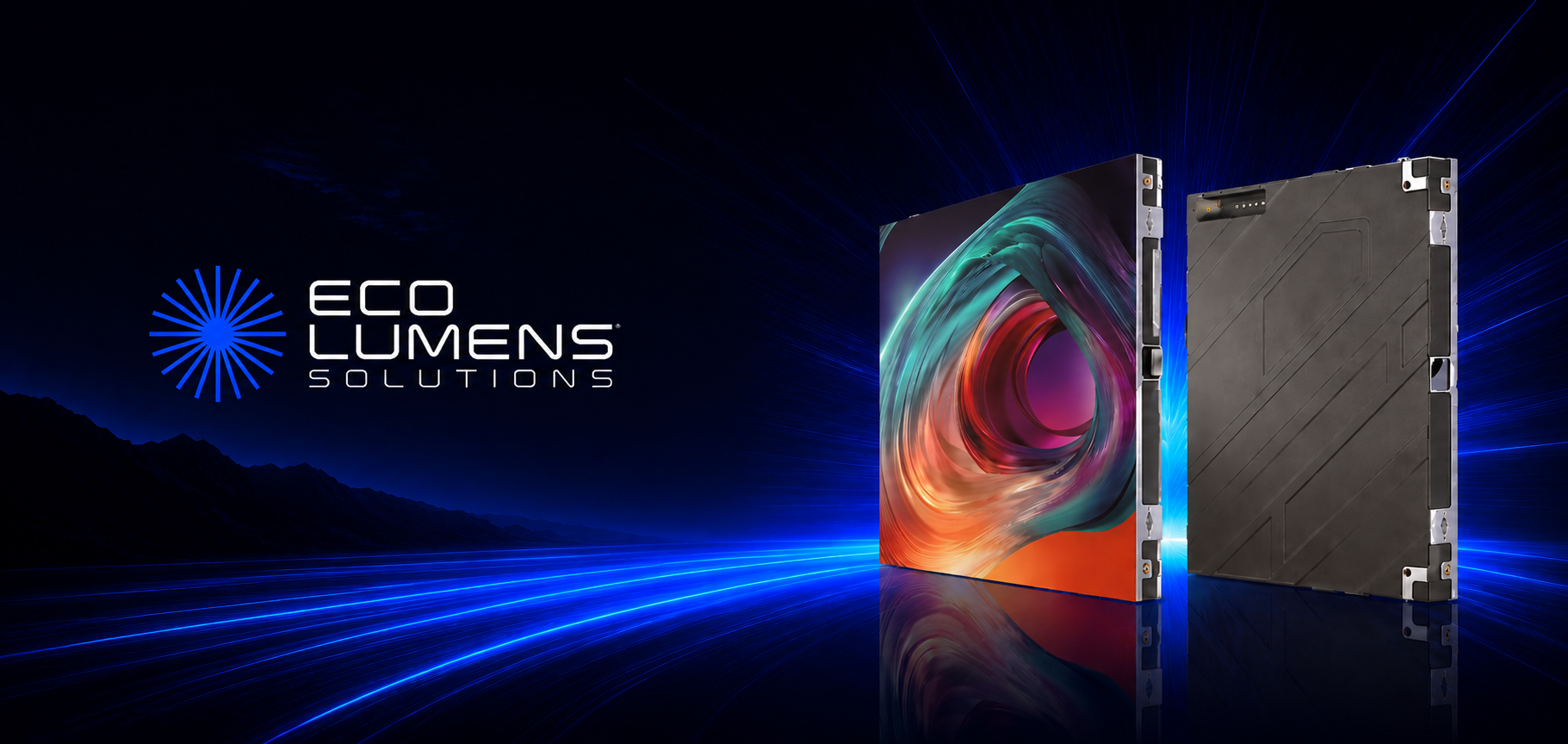

Xpo P2/P2.5/P4

Xpo P2/P2.5/P4

  • High-quality fixed LED display with multiple pixel pitch options
  • Pixel pitch: P2 / P2.5 / P4
  • Cabinet size: 640×480mm — 4:3 ratio
  • Front service / front maintenance
  • Hub design — easy and fast install
  • Refresh rate: 3840–7680Hz
  • Power supply: 100V–240V
  • Weight: 7kg per panel
Request A Solution
SpecificationP2P2.5P4
Pixel Pitch2mm2.5mm4mm
Cabinet Resolution320×240256×192160×120
LED TypeSMD1515SMD1515SMD2121
Scan Way1/321/161/16
Brightness≥1200 nits≥1200 nits≥1200 nits
Cabinet Size640×480mm640×480mm640×480mm
Cabinet Ratio4:34:34:3
Weight7kg7kg7kg
Refresh Rate3840–7680Hz3840–7680Hz3840–7680Hz
Power Supply100V–240V100V–240V100V–240V
Gray Level16 bit16 bit16 bit
MaintenanceFront ServiceFront ServiceFront Service
UseWall-mounted / fixed installWall-mounted / fixed installWall-mounted / fixed install
